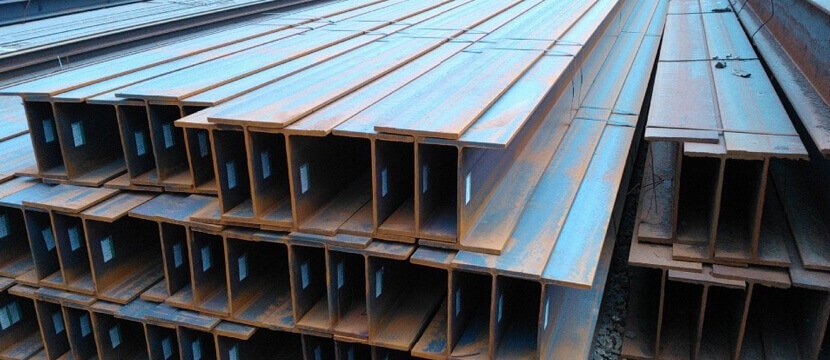

Heb (Ipb) European Wide Flange Beams are manufactured by considering the required rules and regulations so that they perform well and satisfy the specifications and requirements provided by the client. Also, they are manufactured by considering the necessary standards, guidelines as well as norms so that the Heb (Ipb) - European Wide Flange Beams that are manufactured perform well and are of good quality.
These Heb IPB European Wide Flange Beams are manufactured from high-quality raw materials. Therefore, the Heb (Ipb) - European Wide Flange Beams that are produced are of premium quality. Also, these Heb (Ipb) - European Wide Flange Beams undergo a series of tests to test and enhance their quality so that they satisfy the demands of the customer with respect to quality. These Heb (Ipb) - European Wide Flange Beams also undergo a series of procedures step by step so that the final product that is manufactured meets the demands of the clients as well as the applications.
These Heb IPB Beams have a range of properties as well as characteristics, and they get these features from the elements present in their chemical composition. Therefore these Heb (Ipb) - European Wide Flange Beams are utilized in various applications. These applications include the oil and gas industries, chemical industries, petrochemical industries, etc.
|
Steel Grade |
S235JR, S275JR/J0, S355JR/J2 |
|
Standard Length |
6000, 6100 mm / 12000, 12100 mm |
|
Standard Steel |
EN 10025-2 |
|
Dimensions |
DIN 1026-1 |
|
Tolerances |
EN 10279 |
|
Packing |
In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
|
Delivery Condition |
Bright Annealed, Polished or Annealed and Pickled |
| Profile | Dimensions, mm | Weight | Section area | |||
| h | b | s | t | kg/m | cm2 | |
| HEB 100 | 100 | 100 | 6 | 10 | 20,4 | 26,0 |
| HEB 120 | 120 | 120 | 6,5 | 11 | 26,7 | 34,0 |
| HEB 140 | 140 | 140 | 7 | 12 | 33,7 | 43,0 |
| HEB 160 | 160 | 160 | 8 | 13 | 42,6 | 54,3 |
| HEB 180 | 180 | 180 | 8,5 | 14 | 51,2 | 65,3 |
| HEB 200 | 200 | 200 | 9 | 15 | 61,3 | 78,1 |
| HEB 220 | 220 | 220 | 9,5 | 16 | 71,5 | 91,0 |
| HEB 240 | 240 | 240 | 10 | 17 | 83,2 | 106 |
| HEB 260 | 260 | 260 | 10 | 17,5 | 93,0 | 118 |
| HEB 280 | 280 | 280 | 10,5 | 18 | 103 | 131 |
| HEB 300 | 300 | 300 | 11 | 19 | 117 | 149 |
| HEB 320 | 320 | 300 | 11,5 | 20,5 | 127 | 161 |
| HEB 340 | 340 | 300 | 12 | 21,5 | 134 | 171 |
| HEB 360 | 360 | 300 | 12,5 | 22,5 | 142 | 181 |
| HEB 400 | 400 | 300 | 13,5 | 24 | 155 | 198 |
| HEB 450 | 450 | 300 | 14 | 26 | 171 | 218 |
| HEB 500 | 500 | 300 | 14,5 | 28 | 187 | 239 |
| HEB 550 | 550 | 300 | 15 | 29 | 199 | 254 |
| HEB 600 | 600 | 300 | 15,5 | 30 | 212 | 270 |
| HEB 650 | 650 | 300 | 16 | 31 | 225 | 286 |
| HEB 700 | 700 | 300 | 17 | 32 | 241 | 306 |
| HEB 800 | 800 | 300 | 17,5 | 33 | 262 | 334 |
| HEB 900 | 900 | 300 | 18,5 | 35 | 291 | 371 |
| HEB 1000 | 1000 | 300 | 19 | 36 | 314 | 400 |
| Profile: | ||
| Height, h: | mm | |
| Width, b: | mm | |
| Thickness, s: | mm | |
| Thickness, t: | mm | |
| Length, L: | m | |
Result | ||
| Weight per meter: | kg/m | |
| Total weight: | kg | |
